Inside Unbreakable Coin Banks: How Trick Mechanisms and Hidden Latches Work

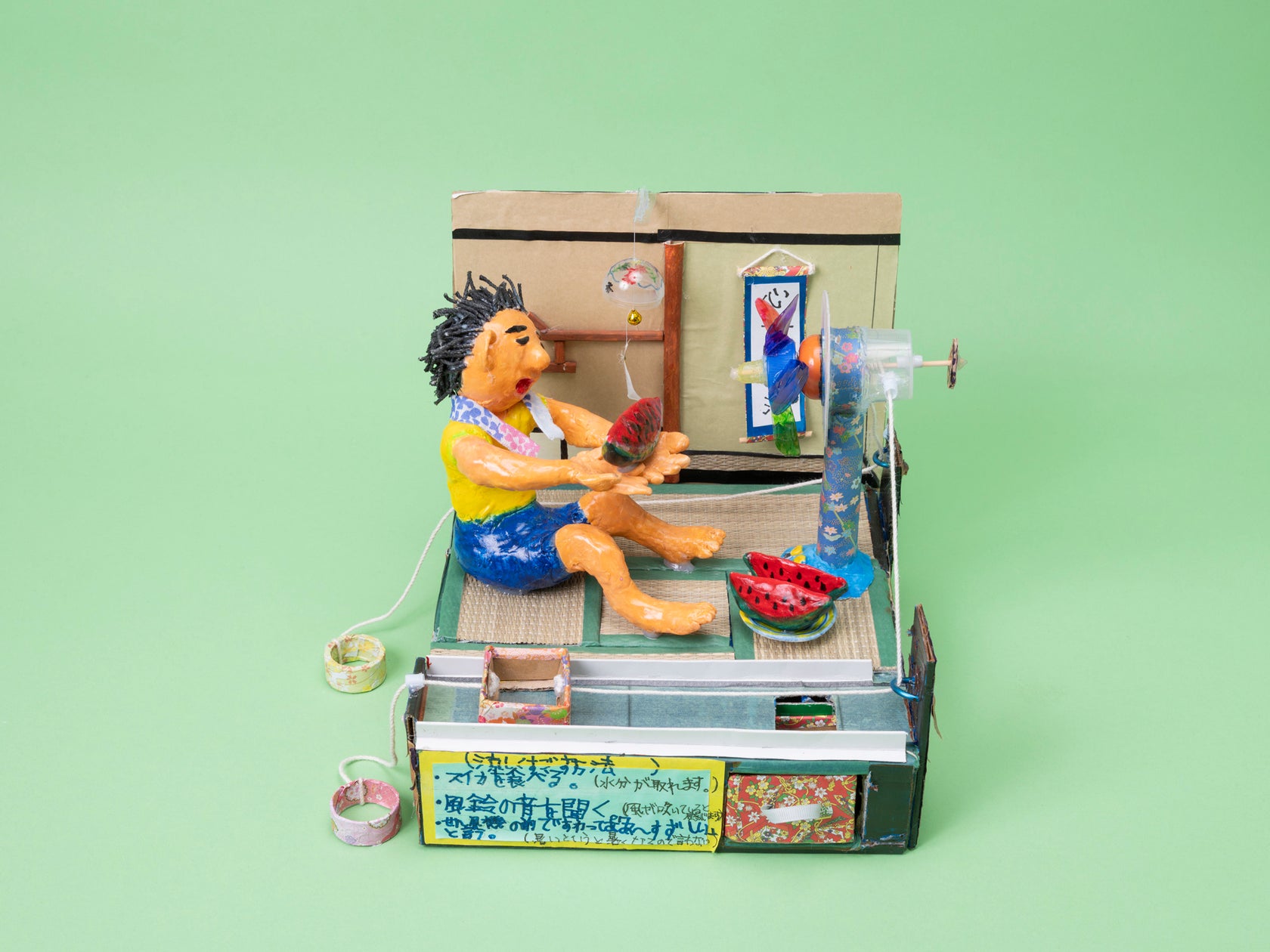

Pick up a vintage cast-iron bank or a modern wooden puzzle cube, tilt it slightly, and you will hear the muffled rattle of trapped currency. For generations, the instinctive reaction to a stuck savings vessel, a frustration captured in the viral Japanese query chokinbako akanai ("my coin bank won't open"), has been brute force. Yet smashing porcelain or prying seam lines destroys both craft and capital. As revealed during the 50th Japan Post Idea Savings Bank Design Contest, documented in a PR TIMES Report showcasing the top 240 designs selected from roughly 370,000 nationwide entries, mechanical containers thrive on intentional obstruction. Modern artisans and heritage toy designers build locks meant to resist everything except precise physical logic.

The cultural obsession with inaccessible savings extends far beyond school craft competitions. At the World Piggy Bank Museum in Amagasaki, Hyogo Prefecture, collections featuring mid-century mechanical novelties, ranging from classic Showa-era pop icons like Mario and Dr. Slump Arale-chan to 19th-century cast-iron trick banks, demonstrate that security has always relied on kinetic misdirection. Opening these vessels requires understanding how gravity pins, multi-axis slide plates, and internal gear locking systems quietly foil forced entry.

📌 Key Takeaways:

• The Core Mechanism: Unbreakable coin banks rely on internal gravity pins, counterweights, and sequential sliding panels rather than keyed locks or sheer material thickness.
• The Common Failure Point: Physical jams stem from coin wedging between mechanical teeth or dried lubricants in cast-iron linkages, not locked tumblers.
• The Bypass Reality: Modern electronic safe banks almost universally feature analog capacitor-drain resets or magnetic solenoid overrides, eliminating the need for destructive opening.

The Engineering Heritage of Secret Trick Boxes

The foundation of modern puzzle coin banks traces directly to traditional Japanese woodworking, particularly the Himitsu-bako (secret trick box) originating in the Hakone region during the late Edo period. These vessels lack keyholes, dials, or visible seams. Instead, their exterior parquetry (yosegi-zaiku) conceals sliding wooden plates that must be manipulated in an exacting sequence, ranging from four distinct movements to complex 66-step configurations.

Each exterior movement clears an internal wooden tongue from an intersecting mortise. If step three requires an upward push on the left panel, pushing the right panel binds the entire perimeter. The interlocking joints exploit the natural grain friction of aged cedar and walnut, meaning ambient humidity can slightly swell the wood and give the false impression of an irreversible mechanical seizure. When such boxes refuse to budge, forcing them cracks the tongue joints. Restoring mobility requires placing the bank in a controlled 40-to-50 percent relative humidity environment for 48 hours to allow the timber to shrink back to its milled tolerances.

Modern mass-market puzzle banks swap hand-milled wood for precision-molded ABS plastic or zinc alloy, but the fundamental mechanics remain unchanged. They hide release points under decorative moldings, fake battery trays, or movable faceplates that demand multi-finger coordination to release spring-loaded interior catches.

Why Shaking a Gravity-Pin Safe Locks It Tighter

The most frequent user error when confronting a stubborn puzzle bank is vigorous shaking. This intuitive response triggers the exact defense mechanism engineered to defeat prying: gravity pin locks.

Inside cylindrical trick banks and combination puzzle spheres, free-floating brass or steel pins sit inside smooth vertical channels. When the bank rests right-side up, these pins drop across the shear line separating the outer shell from the internal coin chamber, physically preventing rotation. If you turn the bank upside down, an opposing set of secondary pins drops into place from the opposite side, keeping the mechanism barred.

Defeating a dual-pin gravity lock requires finding the neutral balance point. You hold the vessel horizontally, spin it slowly along its central axis to create centrifugal outward displacement, and gently tap the exterior casing with a rubber mallet. This kinetic vibration coaxes the pins into their respective balance recesses. Only when the pins float clear of the shear line will the core slide free. Shaking the bank randomly bounces the pins into locking detents, creating the tactile illusion of an unyielding solid block.

Core Locking Systems: Vulnerabilities and Non-Destructive Solutions

Understanding the internal architecture of a stuck bank determines whether you retrieve the currency cleanly or ruin the container. The table below outlines common coin bank locking mechanisms, their kinetic principles, and proven recovery procedures.

Resolving Jammed Coin Slots Without Destructive Tools

In mechanical banks featuring cast-iron linkages, like the early 20th-century historical pieces preserved in the Amagasaki exhibits, the fault rarely lies in the locking plate itself. More often, an oversized or foreign coin lodges directly inside the internal drop chute, jamming the trigger mechanism mid-stroke.

When a coin lodges vertically inside the intake chute, it creates an outward mechanical wedge. Applying extra weight to the coin intake lever bends the thin linkage arms, transforming a temporary blockage into permanent mechanical damage.

To clear this safely:

1. Invert the bank over a padded workstation.
2. Insert an illuminated endoscope probe or narrow penlight through the primary coin slot to isolate the jammed disc.
3. Slide a thin strip of high-tensile 0.2mm spring steel or an automotive feeler gauge along the flank of the trapped coin.
4. Relieve the friction against the chute walls by running the feeler gauge down the side, then nudge the coin backward into the main storage vault with an angled dental pick.

Avoid WD-40 or household penetrants on vintage cast-iron or painted banks. These chemical mixtures degrade antique enamel finishes and attract abrasive grit into unsealed gear trains. For mechanical restoration, select a dedicated synthetic micro-lubricant applied sparingly with a needle applicator directly to the pivot pins.

Overriding Electronic Safe Banks and Digital Deadbolts

Electronic novelty banks shaped like miniature vault safes present a completely different set of structural roadblocks. When the keypad blinks red, emits repetitive error chimes, or refuses code inputs, the issue is almost never software corruption.

These units use an inexpensive direct-current motor or an electromagnetic solenoid to pull a plastic deadbolt back for roughly two seconds after the user enters the correct PIN. When standard alkaline cells discharge below 4.0 volts, the logic board retains enough power to blink LEDs and beep, but lacks the necessary amperage to retract the spring-loaded plunger.

First, replace the power supply with brand-new industrial-grade batteries. If the battery compartment is locked inside the secured vault itself, look closely at the base of the keypad. Most models conceal external emergency contact terminals designed to mate with the terminals of an external 9-volt battery. Holding the 9V battery against these contacts supplies the missing current directly to the motherboard, letting you punch in the factory reset combination, typically 0000, 8888, or 1234 depending on the production run.

If the internal motor hums but the door stays fast, an overfilled coin compartment is probably pressing coins outward against the door frame, pinching the latch bolt. Apply firm, steady inward pressure with your palm directly against the door's center while entering the code or turning the manual wheel. Relieving this friction allows the motor to pull the latch free.

Frequently Asked Questions (FAQ)

Q1: How do I open a solid ceramic piggy bank that has no bottom rubber stopper?

A1: Traditional porcelain banks without access ports were historically intended to be broken, but you can empty them cleanly using the butter knife technique. Invert the bank so a coin drops flat against the interior of the slot. Slide a thin, dull metal ruler or butter knife beneath the coin inside the slot, then invert the bank gently so the coin rests on the metal blade. Slide the blade out smoothly; the coin will ride out along the flat surface without catching the inner ceramic lips. Repeat this process until the bank is empty.

Q2: Why won't my Japanese puzzle box open even though I followed the correct move sequence?

A2: Wood shifts with environmental changes. Natural humidity shifts cause the tight tongue-and-groove joints of authentic puzzle boxes to bind. Do not pry the seams with metal tools. Place the box inside an airtight plastic container alongside a 45% two-way humidity control packet for two to three days. Once the cedar and walnut dry out to their intended factory moisture levels, the friction will drop, letting the hidden plates slide smoothly under gentle thumb pressure.

Q3: How do I reset a digital coin bank when the factory bypass codes fail?

A3: If the default combinations do not clear the lock, drain the circuit board's residual memory. Remove the batteries entirely, press and hold down the "0" key or star key for 30 seconds to bleed the capacitors on the internal microchip, then leave the bank unpowered for 15 minutes. Reinsert fresh batteries; this forces the controller back to its out-of-the-box state, resetting the passcode to its original baseline.

The Art of Mechanical Patience

Opening a stuck savings bank comes down to understanding physical resistance. Whether dealing with an Edo-period puzzle box, an early 20th-century cast-iron mechanical novelty, or an electronic mini-vault, these devices use precision engineering to safeguard their contents.

Forcing a seam or reaching for a hammer permanently destroys both the mechanism and the craft embedded in its design. Approaching the problem methodically, measuring humidity, tracing gravity lines, relieving coin tension, and checking electrical currents, reveals that these containers are not meant to stay sealed forever. They are kinetic puzzles designed to be solved, yielding their rewards only to those who respect the internal machinery.
